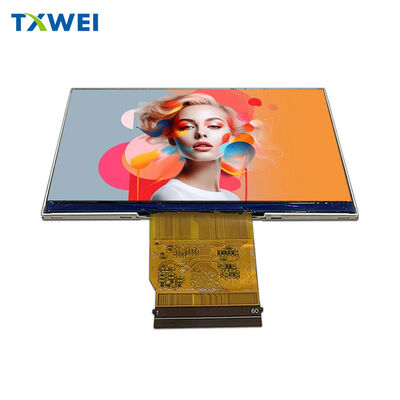

Manufacturer wholesale 4.5-inch LCD screen IPS LCD screen MIPI interface 1920*1080 display screen

상품

Manufacturer wholesale 4.5-inch LCD screen IPS LCD screen MIPI interface 1920*1080 display screen

MOQ:	1
가격:	협상 가능
배송 기간:	7-16일
결제 방법:	L/C,D/A,D/P,T/T
공급 능력:	10000PCS

상세 정보

제품 설명

상세 정보

원래 장소

브랜드 이름

TXWEI

CE FCC ROHS

모델 번호

TXW450038B0

픽셀 수:

1920*1080

보는 방향:

표시 인터페이스:

MIPI 4레인

1500 알

활성 영역:

98.5*55.4

외곽선 크기:

103.5*65.3*2.5mm

작동 온도:

-30+85 5

보관 온도:

-30+85 5

60개 핀

강조하다:

4.5-inch IPS LCD screen

MIPI interface display screen

1920x1080 TFT LCD display

제품 설명

TXW450038B0

4.5" FHD Ultra-Bright Display

1920×1080 | 1500 nits | MIPI 4 Lane | -30°C~+85°C

▎Short

◆ 1500 nits. Sunlight-domination bright.

◆ Full HD. 4.5-inch pocketable precision.

◆ -30°C to +85°C. Arctic to desert. One display.

Built for outdoor instruments, VR controllers, and medical devices that refuse to compromise.

~

▎▎Medium

◈ Brightness Without Peer

1500 nits. Not indoor-rated. Not shade-suitable. Sunlight-facing clarity.

◦ Outdoor instruments readable at high noon. ◦ VR controllers visible under bright room lighting. ◦ Medical displays clear in surgical suite glare. ◦ Education projectors bright enough for ambient-lit classrooms.

◈ Full HD, Fully Compact

1920 × 1080. 4.5-inch diagonal. ~490 PPI density.

◦ Crisp instrumentation readouts. ◦ Smooth VR menu navigation. ◦ Detailed medical imagery. ◦ Sharp educational content.

16:9 native. Video-optimized. UI-efficient.

◈ Temperature Extremes, Mastered

-30°C cold start. +85°C continuous operation. 115-degree span.

◦ Arctic field equipment. ◦ Desert solar installations. ◦ Uncontrolled vehicle cabins. ◦ Industrial process heat.

Storage matches operation: -30°C to +85°C. No special handling. No climate-controlled warehousing.

◈ Modern Interface

MIPI DSI. 4 Lane. 60-pin.

◦ High-speed data. Low EMI. ◦ Direct modern processor connection. ◦ Simpler than LVDS. Faster than RGB.

EK79303 driver. Mature. Stable. Supported.

~ ~

▎▎▎Long

◇ The Optical Core

1920 × 1080 pixels. 98.5 × 55.4 mm active area.

0.0513 mm pixel pitch. RGB stripe. Sharp at viewing distance. Smooth for graphics and video.

Normally black mode. Dark backgrounds. Enhanced contrast. Power efficiency for battery operation.

IPS technology. 178° viewing freedom. Portrait. Landscape. Tilted. Any angle. Color fidelity holds.

◇ The Backlight Engine

1500 nits output. High-bright architecture.

LED array. Efficient drive. Thermal management critical. 2.5 mm thin profile challenges heat dissipation. Engineering solution: optimized LED placement. Enhanced thermal paths. Balanced brightness and longevity.

PWM dimming. Adapt to ambient. Extend life. Manage power.

◇ The Mechanical Design

103.5 × 65.3 × 2.5 mm. Compact footprint. Ultra-slim 2.5 mm thickness.

Fits tight enclosures. Leaves room for battery. Accommodates thermal solutions. Enables sleek industrial design.

Standard mechanical envelope. Drop-in compatibility. Reduced redesign cycles.

◇ Environmental Hardiness

-30°C to +85°C operating. Widest range in class.

Cold-start reliability. No pre-heating required. Immediate operation in frozen environments.

High-temperature stability. No thermal shutdown. No brightness derating. Sustained performance at limits.

Storage equals operating range. Simplified logistics. Reduced handling constraints.

◇ Application Domains

◊ Outdoor Instruments

Survey equipment. Test meters. Field analyzers. Portable data collectors.

1500 nits defeats direct sun. Wide temperature spans seasonal and geographic extremes. Compact size enables handheld portability. Full HD resolution shows data density.

~

◊ Education Projectors

Compact projection systems. Interactive displays. Portable classroom equipment.

High brightness for ambient-light visibility. Full HD for content clarity. Wide temperature for uncontrolled school environments. MIPI interface for modern processor integration.

~

◊ VR Controllers & Headsets

Handheld VR controllers. Compact HMD companion displays. Spatial computing interfaces.

High brightness for room-scale visibility. Full HD for UI precision. Low latency MIPI for responsive interaction. Ultra-slim for ergonomic industrial design.

~

◊ Test & Measurement

Portable oscilloscopes. Field spectrum analyzers. Industrial data loggers. Quality control equipment.

Sunlight-readable for factory floor use. Wide temperature for process environments. Compact for handheld operation. High resolution for waveform detail.

~

◊ Medical Displays

Portable diagnostic equipment. Surgical navigation systems. Patient monitoring devices. Point-of-care instruments.

1500 nits for bright suite visibility. Full HD for image detail. Wide temperature for sterilization and storage conditions. Compact for mobile medical workflows.

~ ~ ~

▎Specifications

Display Core

◦ Model: TXW450038B0

◦ Size: 4.5 inch

◦ Resolution: 1920 × 1080

◦ Aspect Ratio: 16:9

◦ Active Area: 98.5 × 55.4 mm

◦ Pixel Pitch: 0.0513 mm

◦ Display Type: Normally black

◦ Viewing Technology: IPS 178°

◦ Brightness: 1500 nits

◦ Driver IC: EK79303

◦ Interface: MIPI DSI 4 Lane, 60 PIN

Mechanical

◦ Outline: 103.5 × 65.3 × 2.5 mm

◦ Thickness: 2.5 mm

Environmental

◦ Operating Temperature: -30°C ~ +85°C

◦ Storage Temperature: -30°C ~ +85°C
