12.3 inch 720*1920 bar MIPI interface agricultural machinery instrument navigation with capacitive touch LCD display screen

상품

12.3 inch 720*1920 bar MIPI interface agricultural machinery instrument navigation with capacitive touch LCD display screen

MOQ:	1
가격:	협상 가능
배송 기간:	7-16일
결제 방법:	L/C,D/A,D/P,T/T
공급 능력:	10000PCS

상세 정보

제품 설명

상세 정보

원래 장소

브랜드 이름

TXWEI

CE FCC ROHS

모델 번호

TXW123006S0-KK

픽셀 수:

720*1920

보는 방향:

표시 인터페이스:

600 알

활성 영역:

109.51(W)x292.03(H)

외곽선 크기:

134.11(W)x316.63(H)x4.70(T)

작동 온도:

-20+70 0

보관 온도:

-30+80℃

40PIN

디스플레이 IC:

ILI79600A-XA

터치 기술:

터치 인터페이스:

아야 IC:

ILI2511

강조하다:

12.3 inch MIPI LCD display screen

agricultural machinery instrument LCD screen

capacitive touch TFT LCD display

제품 설명

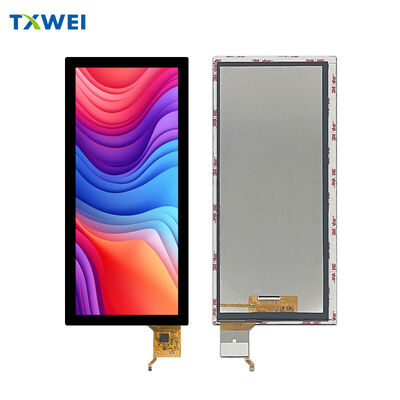

TXW123006S0-KK | 12.3-Inch Automotive-Grade IPS Display

The Ultimate Wide-Screen Solution for Vehicle Instrumentation and Smart Mirrors

Overview

Meet the TXW123006S0-KK, a premium 12.3-inch IPS display engineered specifically for demanding automotive and industrial applications. With its ultra-wide aspect ratio, high brightness, and rugged reliability, this display transforms how operators interact with critical vehicle data.

Key Features

Ultra-Wide 12.3-Inch Viewing Area

The expansive 720×1920 resolution delivers crisp, detailed imagery across a 109.51×292.03mm active area. Perfect for split-screen navigation, multi-gauge instrument clusters, and comprehensive data visualization.

All-Angle IPS Technology

Advanced IPS panel technology ensures consistent color accuracy and clarity from any viewing angle. No color shift, no contrast loss—just reliable visibility whether you're glancing from the driver's seat or adjusting controls.

600 Nits High Brightness

Combat sun glare and harsh lighting conditions with 600 nits of luminance. Critical information remains legible in direct sunlight, essential for outdoor agricultural machinery and construction vehicles.

Automotive-Grade Durability

Operating temperature range of -20°C to +70°C with storage capability from -30°C to +80°C. Built to survive temperature swings from freezing winters to scorching summers without performance degradation.

G+G Capacitive Touch

Durable glass-on-glass construction resists scratches and impacts. ILI2511 touch controller with I2C interface delivers responsive, precise touch input—even with gloves in industrial environments.

Streamlined Integration

MIPI 40-pin interface paired with ILI79600A-XA driver IC ensures broad compatibility with automotive computing platforms. Slim profile at just 2.80mm (display only) or 4.70mm (with touch) enables flexible mounting in space-constrained dashboards.

Technical Specifications

Display Core

Diagonal: 12.3 inches
Resolution: 720 × 1920 pixels
Panel Type: IPS full-viewing angle
Active Area: 109.51mm (W) × 292.03mm (H)
Brightness: 600 cd/m²
Driver IC: ILI79600A-XA
Interface: MIPI 40 PIN

Mechanical Design

Outline Dimensions (Display): 119.86 × 301.79 × 2.80mm
Outline Dimensions (With Touch): 134.11 × 316.63 × 4.70mm
Ultra-slim profile for modern dashboard integration

Environmental Resilience

Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Designed for continuous vibration resistance

Touch System

Technology: G+G capacitive
Controller: ILI2511
Interface: I2C
Multi-touch capable with glove-friendly operation

Application Scenarios

Agricultural Machinery Instrumentation

Modern tractors, harvesters, and sprayers demand real-time telemetry—fuel consumption, field mapping, implement status. The TXW123006S0-KK's wide format accommodates split-screen layouts showing navigation alongside operational data. Its 600-nits brightness cuts through cabin glare during long harvesting days, while the rugged G+G touch surface withstands dusty, high-vibration conditions.

Construction and Mining Equipment

Excavators, loaders, and dump trucks operate in brutal environments. This display provides operators instant access to machine diagnostics, proximity sensors, and productivity metrics. The industrial temperature range handles engine compartment heat and overnight cold starts, ensuring 24/7 readiness on job sites.

Automotive Digital Clusters

Replace traditional analog gauges with a fully reconfigurable digital instrument panel. The elongated 12.3-inch form factor mirrors classic dashboard layouts while enabling dynamic content—navigation maps, media playback, ADAS warnings, and vehicle status—all in the driver's line of sight.

Smart Rearview Mirror Systems

Transform conventional mirrors into intelligent displays. When activated, the screen overlays backup camera feeds, blind-spot monitoring, and telematics data. IPS technology maintains visibility from the driver's natural viewing position, while high brightness prevents washout from headlights at night.

Fleet Management Terminals

Commercial vehicles require constant connectivity. Use this display for dispatch interfaces, route optimization, and regulatory compliance tracking. The MIPI interface integrates seamlessly with Android Automotive and Linux-based fleet computers.

Why Choose TXW123006S0-KK?

✓ Purpose-built for mobility — Every specification optimized for vehicle-mounted operation
✓ Sunlight-readable — 600 nits ensure visibility in open-cab agricultural and construction equipment
✓ ** glove-friendly touch** — G+G surface responds reliably through work gloves, no stylus required
✓ Temperature hardened — Survives the thermal stress of engine bays and unconditioned cabins
✓ Future-proof connectivity — MIPI interface compatible with next-generation automotive processors

Ready to Integrate?

The TXW123006S0-KK is available for sampling and volume production. Our engineering team provides technical documentation, reference designs, and integration support to accelerate your product development.

Contact us today for datasheets, pricing, and evaluation samples. Let's build the next generation of smart vehicle interfaces together.
