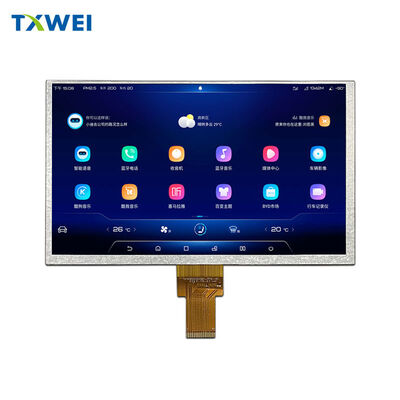

9 inch LCD screen 1024*600 resolution LVDS interface IPS central control screen instrument display navigation display single screen

상품

9 inch LCD screen 1024*600 resolution LVDS interface IPS central control screen instrument display navigation display single screen

MOQ:	1
가격:	협상 가능
배송 기간:	7-16일
결제 방법:	L/C,D/A,D/P,T/T
공급 능력:	10000PCS

상세 정보

제품 설명

상세 정보

원래 장소

브랜드 이름

TXWEI

CE FCC ROHS

모델 번호

TXW900002B0

픽셀 수:

1024*600

보는 방향:

표시 인터페이스:

900 알

활성 영역:

196.61*114.15

외곽선 크기:

210.7*126.4*5.0mm

작동 온도:

-30+80℃

보관 온도:

-30+80℃

40PIN

디스플레이 IC:

HX8282A11/HX8696A01

강조하다:

9 inch LCD screen LVDS interface

IPS central control screen 1024x600 resolution

TFT LCD display navigation instrument screen

제품 설명

TXW900002B0 — 9" Industrial Workhorse Display

1024×600 | LVDS | 900nits | -30°C to +80°C

◆ 04:30 AM, Frozen Farmland

The engine cranks in -25°C air. Hydraulic fluid moves like molasses. Your operator needs to check the implement height before starting the day's harvest—but the consumer-grade tablet on the dash is dark. Again. Liquid crystals frozen. Touch layer unresponsive.

The TXW900002B0 doesn't sleep in the cold.
Operational from -30°C without heaters. No ghosting. No lag. The HX8282A11 driver wakes up immediately, showing GPS guidance and pressure readings while frost still covers the cab windows.

◆ 02:00 PM, Engine Bay Heat

Black dashboard. Direct summer sun. Engine compartment bleeding heat. Cab interior pushes +75°C. Standard displays yellow-out. Backlight overdrives. Adhesive fails.

This module thrives where others fade.
+80°C continuous operation rating. Thermal compensation circuits stabilize the 900-nit LED backlight bars. The 5.0mm thick housing dissipates heat through integrated mounting points—no external cooling fans needed in your agricultural machinery.

◆ Constant Vibration, Zero Failure

12 hours of field operation. 40-ton mining truck. Every rock on the haul road sends shock through the chassis. Consumer HDMI connectors walk loose. Ribbon cables fracture. Screen flickers then dies.

LVDS differential signaling locks in reliability.
40-pin Low Voltage Differential Swing ignores electrical noise. Cable runs up to 3 meters from your controller to the dash without signal degradation. Locking FFC connectors stay seated through ISO 15003 agricultural vibration standards. The 210.7×126.4mm outline mounts with torque-specified screws—no flex, no tab-bond cracks.

◆ Glare Without the Guesswork

Snow blindness. White concrete loading dock. Sunlight reflecting off the hood directly onto the display. 500-nit screens become mirrors. 2000-nit units drain batteries and burn fingertips.

900 nits hits the sweet spot.
Bright enough to cut through high ambient light in semi-outdoor cabs. Efficient enough for 24V vehicle electrical systems without alternator strain. IPS viewing angles keep navigation maps readable whether the operator sits straight or reaches for the hydraulics at 45 degrees.

Technical Brief

Visuals
Diagonal: 9.0 inches (228.6mm)
Active Area: 196.61 × 114.15 mm
Resolution: 1024 × 600 (WVGA, 16:9)
Brightness: 900 cd/m² typical
Technology: IPS Full Viewing Angle

Signal & Power
Interface: LVDS 40-pin (JEIDA/SDD standard)
Driver IC: HX8282A11 + HX8696A01 dual-chip
Voltage: 3.3V logic / 12V backlight typical
Compatibility: Linux, Windows Embedded, Android (reference EDID provided)

Physical
Outline: 210.7 × 126.4 × 5.0 mm
Mounting: 4-point screw fixation, corner tabs
Connector: Lock-type FFC/FPC for vibration resistance

Environmental
Operating: -30°C to +80°C (cold-start capable)
Storage: -30°C to +80°C (unconditioned warehouse safe)
Humidity: 90% RH non-condensing

Built For

Agricultural Cabs — ISOBUS implement control, GPS steering, 12V/24V tolerant
Commercial Fleets — Truck navigation, backup camera display, thermal cycling immunity
Industrial HMIs — Factory floor panels, outdoor kiosks, split-screen SCADA
Field Medical — Portable ultrasound, vital signs monitors, arctic to desert deployment

Integration Support

We ship with the survival kit for rugged product development:
• LVDS timing diagrams for Rockchip/NXP/i.MX6 initialization
• STEP mechanical files for gasket sealing design
• Thermal simulation data for heater pad integration (extreme cold options)
• Custom FPC lengths available for unique cab routing

Sample Lead Time: 5-7 business days
Volume MOQ: Flexible scaling for OEM agricultural programs

Stop replacing dead screens in the field.
Engineer for the extreme from day one.
