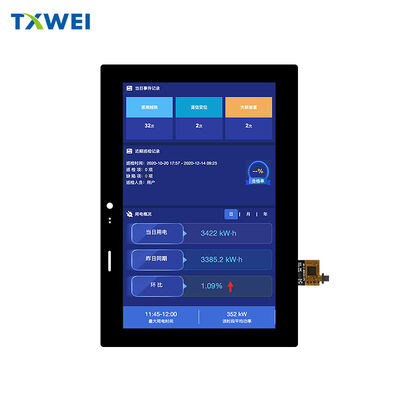

8-inch LCD capacitive touch screen with MIPI interface, resolution of 1200*1920, suitable for security display and industrial control TFT display module

상품

8-inch LCD capacitive touch screen with MIPI interface, resolution of 1200*1920, suitable for security display and industrial control TFT display module

MOQ:	1
가격:	협상 가능
배송 기간:	7-16 일
결제 방법:	L/C,D/A,D/P,T/T
공급 능력:	10000PCS

상세 정보

제품 설명

상세 정보

원래 장소

브랜드 이름

TXWEI

CE FCC ROHS

모델 번호

TXW800042B0-YLT

픽셀 수:

1200*1920

시청 방향:

표시 인터페이스:

MIPI 4레인

500 니트

활성 영역:

107.64*17222

외곽선 크기:

137.61*197.06*4.5mm

작동 온도:

-10+60℃

보관 온도:

-20+70 0

31개 핀

터치 기술:

터치 인터페이스:

IC를 터치합니다:

GT1151QM

강조하다:

8-inch MIPI TFT LCD display

capacitive touch screen industrial display

1200x1920 resolution security display module

제품 설명

TXW800042B0-YLT
8-Inch 1200×1920 IPS MIPI Display – 500 nits, G+G Touch, Slim 4.5 mm
Built for Security Panels, Plant-Growth Controllers, Tower Cranes, Smart Lockers & Medical Monitors

Why Engineers Choose TXW800042B0-YLT

Ultra-Clear 1200×1920 on an 8" diagonal = 283 PPI, icons razor-sharp at 30 cm viewing distance.
500 nits with IPS 85/85/85/85 – readable under warehouse fluorescent or greenhouse LEDs, no premium-sunshine price tag.
G+G capacitive touch (GT1151QM) supports rain, glove, 2 mm tempered-glass overlay – perfect for outdoor kiosks.
31-pin MIPI DSI 4-lane – single FPC, <150 mW @ black image, drops straight onto RK3566, MTK, NXP i.MX8.
–10 °C ~ +60 °C operating certified; survives night-frost on construction site or 45 °C greenhouse noon.
137.61 × 197.06 × 4.5 mm outline – thinner than a pencil, slides into 10 mm IP65 enclosure without redesign.

Quick Specs

Parameter	Value
Model	TXW800042B0-YLT
Size / Resolution	8" / 1200 × 1920
Active Area	107.64 × 172.22 mm
Luminance	500 nits (typ.), 800:1 CR
Viewing Angle	IPS full 85°
Interface	MIPI DSI 4-lane, 31 pin, 1.2 Gbps/lane
Touch	G+G, 10-point, 100 Hz report, I²C, GT1151QM
Outline	137.61 × 197.06 × 4.5 mm
Operating Temp	–10 °C ~ +60 °C
Storage Temp	–20 °C ~ +70 °C
ESD	±8 kV contact, ±15 kV air
Power	3.3 V logic, 5 V BL, 2.1 W max.

Typical Applications

Security & CCTV Monitor – 1200×1920 shows 3×2 720P streams natively; G+G touch works with 2 mm armored glass.
Plant-Growth Controller – 500 nits combats pink/blue LED grow-lights; 60 °C upper limit handles greenhouse heat.
Tower-C crane Display – slim 4.5 mm fits cockpit swing-arm; –10 °C cold-start guaranteed.
Parcel & Food Lockers – portrait 1200×1920 lists full QR code; capacitive rain mode reduces false touches.
Portable Medical Monitor – 283 PPI renders ECG traces without jaggies; G+G easy-clean for hospital disinfectant.

Global Compliance

CE, FCC, RoHS, REACH reports ready for EU/US market entry.
IEC-60068-2-1/2/14 cold, dry-heat & thermal-cycle tested.
Halogen-free & conflict-minerals-free statement available for corporate ESG audits.

Get Started Today

Receive formal quotation + full datasheet + 3D files within 30 min.
Approve sample order – we ship same day before 4 p.m. China time.

TXW800042B0-YLT – the slim, high-resolution 8" MIPI display that fits any space-critical, cost-sensitive industrial or smart-locker project. Stop compromising on clarity or temperature range—upgrade your next design now!
