| MOQ: | 1 |
| 가격: | 협상 가능 |
| 배송 기간: | 7~16일 |
| 결제 방법: | l/c, d/a, d/p, t/t |
| 공급 능력: | 10000pcs |
Product Overview

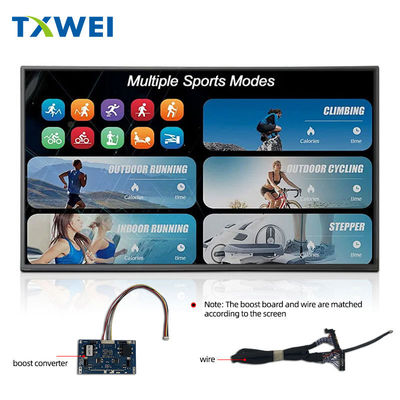

TXW185006B0 is an 18.5-inch full HD LCD display module developed for harsh outdoor and semi outdoor environments. With high brightness of 500 cd/m ², IPS full view angle, and wide temperature operation capability of -20 ℃~+70 ℃, it can provide stable, highly readable, and long-lasting human-computer interaction interfaces for industries such as advertising media, smart transportation, new energy facilities, and industrial control.
Product Highlights
500 nits ultra-high brightness: Even under strong midday sunlight, the image remains clear and sharp, unafraid of reflections.
IPS full viewing angle: 178 ° horizontal/vertical wide viewing angle, ensuring consistent color viewing from any angle.
1920 × 1080 Full HD: delicate picture quality, precise restoration of advertising, data, and image details.
LVDS 30Pin standard interface: compatible with mainstream driver boards in the market, plug and play, shortening the development cycle.
Industrial grade wide temperature range: stable operation from -20 ℃ to+70 ℃, safe storage from -30 ℃ to+80 ℃, and non-stop operation in extreme cold and heat.
Ultra thin 3.2mm body: With its lightweight design, it provides more creative space for the overall structure of the device.
optical properties
• Size/Diagonal: 18.5 inches (16:9)
• Resolution: 1920 × 1080 (FHD)
• Brightness: 500 cd/m ² (Typ.)
• Contrast ratio: 1000:1 (Typ.)
• Viewing angle: 178 ° (H)/178 ° (V) (CR ≥ 10)
• Color gamut: 72% NTSC (Typ.)
• Surface treatment: matte finish, optional AR/AG reinforced glass
structural dimensions
• Effective display area: 408.96 mm × 230.4 mm
• Dimensions: 418.02 mm × 243.9 mm × 3.2 mm (T)
• Weight: ≈ 580 g (module body)
• Installation hole position: 4 × M3 × 5.5 mm (symmetrical distribution, tolerance ± 0.2 mm)
Interface and Electrical
• Signal interface: Single channel LVDS, 30 pin connector, 8-bit/color
• Power input: 12V ± 5%
• Power consumption: 15 W (Typ.)/18 W (Max.)
• Backlight driver: Constant current 120 mA (Typ.), supports PWM dimming
Environmental reliability
• Working temperature: -20 ℃~+70 ℃
• Storage temperature: -30 ℃~+80 ℃
• Relative humidity: 5%~95% RH (no condensation)
• Vibration: 10 Hz~58 Hz/1.5 mm; 58 Hz ~ 200 Hz / 2 g, 30 minutes per axis
• Impact: 50 g, 11 ms, half sine wave, working state
• MTBF:> 50,000 h(25 ℃)
meet the standard
• RoHS 2.0&REACH Compliance Declaration
• CE and FCC Class A pre scan reports can be provided upon request
• Reliability testing is conducted in accordance with IEC 60068-2-1/-2/-6/-27
Typical application scenarios
Outdoor advertising machine: Play commercial advertisements 24/7, still bright and eye-catching under direct sunlight.
Charging station display: Real time display of information such as battery level, cost, QR code, etc., with high brightness and anti glare.
Bus stop/smart light pole: provides routes, weather, emergency announcements, and high brightness to ensure readability from a distance.
Industrial control/vehicle display: shock resistant, high and low temperature resistant, meeting the requirements of harsh industrial and transportation environments.
Self service vending/government terminal: Full HD image quality enhances interactive experience, IPS perspective allows for simultaneous operation by multiple people.
