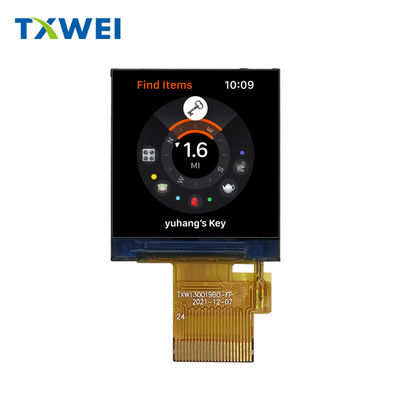

TXW130019B0 Display Screen Product Introduction
1, Product Overview
TXW130019B0 is a 1.3-inch square scale full-color TFT LCD display screen carefully crafted by Shenzhen Tianxianwei Technology Co., Ltd. It provides ideal display solutions for various smart devices with excellent display performance and reliable quality. This display not only features high resolution, wide viewing angle, and high brightness, but also has excellent temperature adaptability and low power consumption performance, ensuring stable operation in various application scenarios.
2, Core parameters
Size and Display: 1.3 inches in size, with a resolution of 240 * 240, using RGB stripe pixel arrangement, display area of 23.4mm (H) 23.4mm (V), pixel spacing of 0.0975mm 0.0975mm, capable of presenting clear and delicate images.
Performance: With a brightness of 450cd/m ², the displayed content remains clear and visible even in strong outdoor light. Its IPS full view technology allows viewers to have a good visual experience from all angles, with a wide working temperature range of -20 ℃ to+70 ℃ and a storage temperature range of -30 ℃ to+80 ℃, adapting to various harsh environments.
Driver and Interface: Equipped with advanced driver IC - ST7789V, adopting MCU 8 BIT interface, PIN number of 12, using 2 LED lights for backlight, backlight current of 40mA, backlight voltage of 3.2V, can quickly adapt to various main control chips, simplifying the development process.
3, Product advantages
High image quality presentation: High resolution combined with RGB pixel arrangement makes the image rich in details and high color reproduction, providing users with an immersive visual experience. Whether it is text display or image presentation, it can achieve precision and delicacy.
Wide temperature stability: capable of stable operation within a wide temperature range of -20 ℃ to+70 ℃, meeting the stringent temperature requirements of different scenarios such as industrial, medical, outdoor, etc., ensuring uninterrupted operation of equipment in high and low temperature environments.
Wide viewing angle experience: Thanks to IPS full view technology, the screen can maintain good color and contrast from any angle, without obvious color cast or viewing angle limitations, making it convenient to view device information from multiple angles.
High brightness and easy to read: With a brightness of 450cd/m ², even in bright lighting conditions such as hospitals, outdoor work sites, etc., the displayed content is still clear and distinguishable, without fear of strong light interference.
Strong adaptability: The MCU 8 BIT interface and 12PIN design are compatible with multiple main control chips, reducing the difficulty of adapting to different devices, shortening the development cycle, and improving project efficiency.
Professional service guarantee: Shenzhen Tianxianwei Technology Co., Ltd. provides full technical support, first-class quality control, and professional after-sales service, providing a solid backing for the stable use and continuous updating and upgrading of products, eliminating customers' worries.
4, Application scenarios
TXW130019B0, with its excellent performance and features, is widely used in smart wearable devices to display real-time exercise data, health indicators, and other information for users; Provide clear operation interface and status prompts in beauty and hairdressing equipment such as intelligent hair removal devices and intelligent hair clippers; In the field of medical equipment, such as portable diagnostic devices, monitoring instruments, etc., various medical data are accurately displayed to assist medical staff in diagnosis and treatment; At the same time, it has also become the preferred display screen for many smart small appliances, enhancing the human-machine interaction experience of products and helping with smart home life.
